DISCLAIMER: THIS IS FOR EDUCATIONAL PURPOSES ONLY. --MAX HITEK

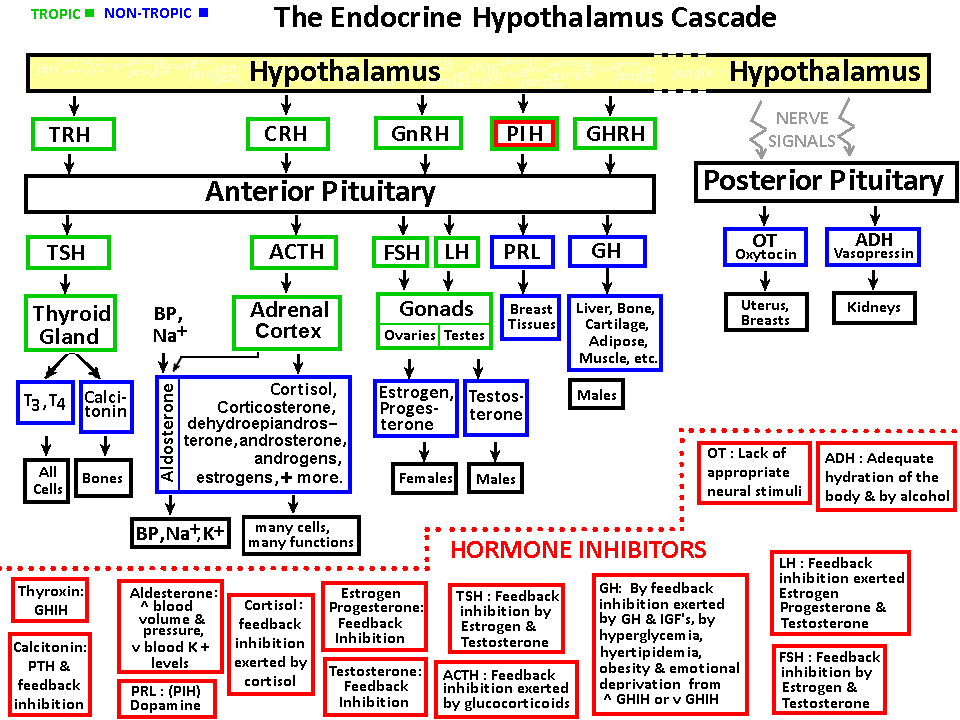

Endocrine Hypothalamus Cascade Diagram

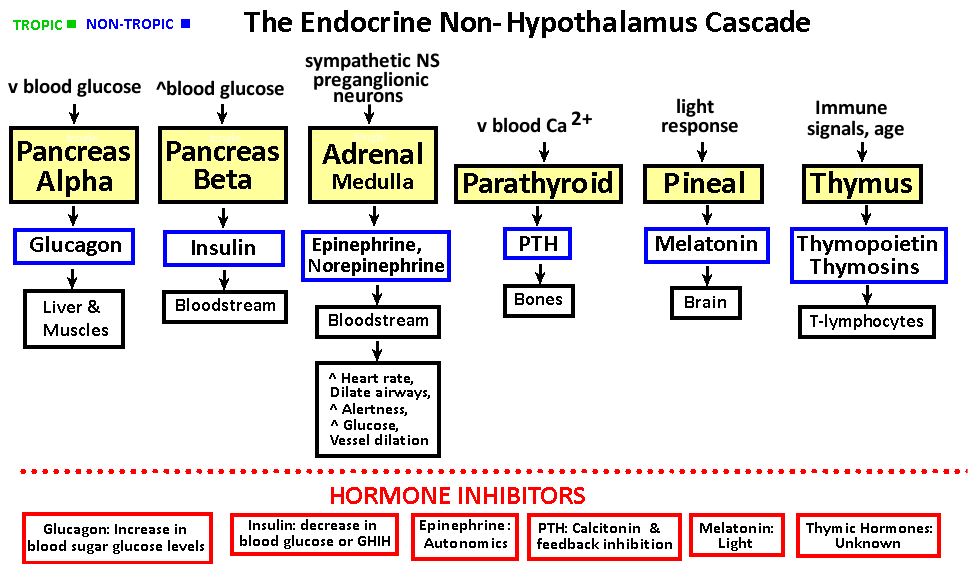

(includes non-Hypothalamus Cascade)

2026 04/20 ---Max Hitek

I have created the two diagrams below as an aid in understanding the endocrine cascade. I think learning is easier when a complex subject can be visualized. I was unable to find a suitable diagram on the internet, so I made my own. I wanted it to be a learning aid that would fit on one sheet of paper, and be as comprehensive as possible. (I will update them occasionally.)

Feel free to do a screen capture of the two diagrams and save them off. I relinquish all copyrights to the diagrams.
